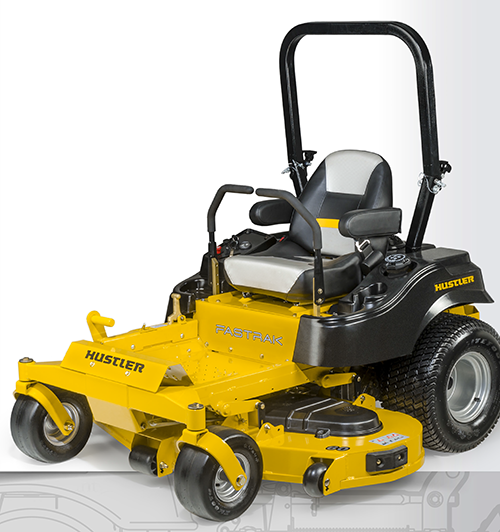

| FASTRAK |
|
| |
|
| ENGINE |
|
| MANUFACTURER |
Kawasaki |
| HP |
48”deck: 23HP* - FR691V
54”deck: 23HP* - FR691V
60”deck: 24HP* - FR730V
* Per SAE J 1995 |
| DISPLACEMENT |
726cc |
| COOLING |
Air Cooled |
| ENGINE WARRANTY |
3 year |
| |
|
| DRIVE SYSTEM |
|
| TYPE |
Dual Hydrostatic |
| TRANSMISSION |
HydroGear ZT 3100 |
| SPEED |
8 mph |
| PARKING BRAKES |
Patented automatic |
| |
|
| DECKS |
|
| CUTTING WIDTH |
Side Discharge: 48”, 54”, 60”
Rear Discharge: 54”, 60” |
| CUTTING HEIGHTS |
1.5”-4.5” |
| DECK LIFT |
Foot Operated |
| DEPTH |
5” |
| BLADES |
3 |
| BLADE LENGTH |
48”deck: 16.50” x 2.50” x .20”
54”deck: 18.50” x 2.50” x .20”
60”deck: 20.50” x 2.50” x .20” |
| SPINDLES |
Aluminum w/ 1.0” shafts and sealed ball bearings |
| DRIVE |
Electric PTO Clutch |
| CONSTRUCTION |
10ga. Fabricated |
| SPINDLE MOUNTS |
Reinforced 11ga. |
| IMPACT/TRIM AREAS |
3/8” x 1” steel bar |
| |
|
| CONSTRUCTION |
|
| FRAME |
1.5” x 3” x .125 ” steel |
| FRONT AXLE |
Fabricated w/ sealed ball bearings |
| FRONT CASTER WHEELS |
Heavy duty ball bearing, greasable |
| FRONT CASTER FORKS |
Fabricated 3/8” steel |
| |
|
| GENERAL |
|
| SEAT |
Custom bolstered vinyl w/int. suspension and armrests |
| FUEL CAPACITY |
5 gal. |
| CUP HOLDER |
Yes |
| FRONT TIRE |
48”: 13 x 5 - 6 smooth
54”, 60”: 13 x 6.5 - 6 smooth
|
| DRIVE TIRE |
48”: 22 x 9.5 - 10
54”, 60”: 22 x 11 - 10
|
| |
|
| DIMENSIONS |
|
| WEIGHT |
48”: 835 lbs 48”RD: 845 lbs
54”: 860 lbs 54”RD: 870 lbs
60”: 885 lbs
|
| HEIGHT |
44.3” |
| LENGTH |
73.6” |
| WIDTH |
48”: 49.1” 48”RD: 48.85”
54”: 55.1” 54”RD: 54.85”
60”: 61.1”
|
| TIRE WIDTH |
48”: 47”
54”, 60”: 52”
|
| |
|
| PRODUCTIVITY* |
|
| ACRES PER HOUR |
48”: 3.10
54”: 3.48
60”: 3.88
|
|
|

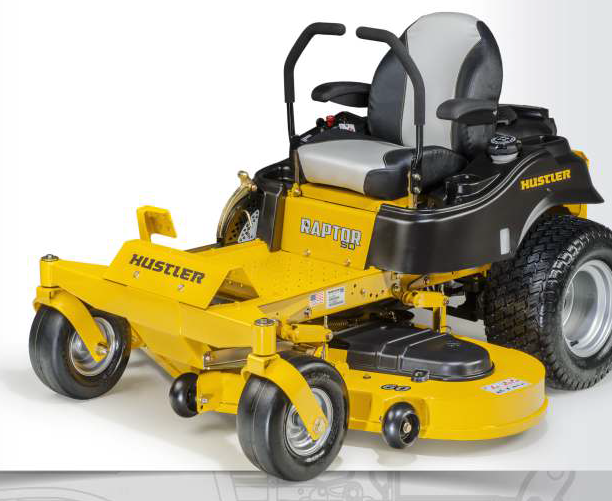

| RAPTOR SD |
|
| |
|
| ENGINE |
|
| MANUFACTURER |
Kawasaki FR691V |
| HP |
23HP*
* Per SAE J 1995
|
| DISPLACEMENT |
724cc |
| COOLING |
Air Cooled |
| ENGINE WARRANTY |
3 year |
| |
|
| DRIVE SYSTEM |
|
| TYPE |
Dual Hydrostatic |
| TRANSMISSION |
HydroGear 2800 |
| SPEED |
12 km/h |
| PARKING BRAKES |
Patented automatic |
| |
|
| DECKS |
|
| CUTTING WIDTH |
48” (1219mm) & 54” (1372mm) |
| CUTTING HEIGHTS |
38mm - 114mm |
| DECK LIFT |
Foot Operated |
| DEPTH |
116mm |
| BLADES |
48”deck: 3 54”deck: 3 |
| BLADE LENGTH |
48”deck: 419 x 63.5 x 5.0 mm
54”deck: 470 x 55.9 x 5.0 mm
|
| SPINDLES |
Aluminum with 25.4mm shafts and
double lip sealed ball bearings
|
| DRIVE |
Electric PTO Clutch |
| CONSTRUCTION |
3.0 mm Fabricated |
| SPINDLE MOUNTS |
Reinforced 4.5 mm |
| IMPACT AREAS |
9.5 x 25.0 mm steel bar |
| |
|
| CONSTRUCTION |
|
| FRAME |
82.5 x 38.0 x 3.0 mm steel |
| FRONT AXLE |
Fabricated with sealed ball
bearings
|
| FRONT CASTER WHEELS |
Commercial duty steel roller
bearings, greasable
|
| FRONT CASTER FORKS |
Fabricated 9.5 mm steel |
| |
|
| GENERAL |
|
| SEAT |
Premium seat with armrests |
| FUEL CAPACITY |
11 liter |
| CUP HOLDER |
Yes |
| FRONT TIRE |
48”: 13 x 5 - 6
54”: 13 x 6.5 - 6
|
| DRIVE TIRE |
48”: 20 x 8 - 10
54”: 20 x 12 - 10
|
| |
|
| DIMENSIONS |
|
| WEIGHT |
48”: 285 kg
54”: 295 kg
|
| HEIGHT |
1070 mm |
| LENGTH |
1854 mm |
| WIDTH |
54”: 1397 mm
48”: 1245 mm
|
| TRACK WIDTH |
54”: 1168 mm
48”: 1042 mm
|
| |
|
| PRODUCTIVITY* |
|
| CUTTING AREA / HOUR |
54”: 13 080 m²
48”: 11 600 m²
|
|
|
