WB20XT

SPECIFICATIONS

ENGINE
GX120
DISPLACEMENT (CC)
118cc
FUEL TYPE
Unleaded
FUEL TANK CAPACITY
2.5 litres
FUEL CONSUMPTION
1 l/hr
TOTAL HEAD
32m
SUCTION HEAD
8m
MAXIMUM PUMPING CAPACITY
620 litres/min
SUCTION PORT DIAMETER
50mm
DISCHARGE PORT DIAMETER
50mm
SELF PRIMING TIME (AT 5m)
110 sec at 5m
PUMP TYPE
Centrifugal volume pump
OIL ALERT
Yes
DIMENSIONS
455 x 365 x 420
DRY WEIGHT (KG)
21
MOUNTING TYPE
Rubber
HOSE BAND/STAINER
Yes

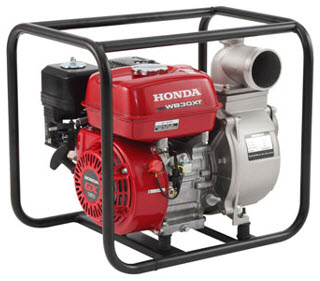

WB30XT

SPECIFICATIONS

ENGINE
GX160
DISPLACEMENT (CC)
163cc
FUEL TYPE
Unleaded
FUEL TANK CAPACITY
3.6 litres
FUEL CONSUMPTION
1.4 l/hr
TOTAL HEAD
28m
SUCTION HEAD
8m
MAXIMUM PUMPING CAPACITY
1100 litres
SUCTION PORT DIAMETER
80mm
DISCHARGE PORT DIAMETER
80mm
MAXIMUM PUMPING CAPACITY
1,100 l/hr
SELF PRIMING TIME (AT 5m)
150 sec at 5m
PUMP TYPE
Centrifugal volume pump
OIL ALERT
Yes
DIMENSIONS
510 x 385 x 455
DRY WEIGHT (KG)
27
MOUNTING TYPE
Rubber
HOSE BAND/STAINER
Yes
